AWS ECR Token auto-refresh

1. Issue

AWS ECR authentication tokens are valid for 12 hours. After expiration, you need to re-execute docker login or aws ecr get-login-password.

2. Solution

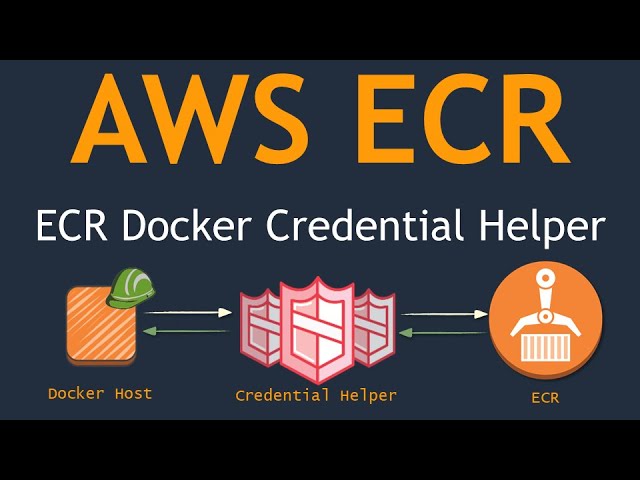

Use ECR Credential Helper to automatically call the AWS API to obtain the latest token when Docker pulls an image.

Applicable scenarios: Development machines, CI/CD, servers, and any environment with Docker.

3. IAM policy configuration

3.1 restrict specific repositories

The AWS managed policy AmazonEC2ContainerRegistryReadOnly authorizes all repositories (*). To restrict pulls to specific repositories, a custom policy must be created.

Policy Notes:

• The Resource of ecr:GetAuthorizationToken must be * (The token is for the entire Registry; single-repository tokens are not supported.)

• The Resource for other operations can be restricted to a specific repository’s ARN.

{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AllowLogin",
            "Effect": "Allow",
            "Action": [
                "ecr:GetAuthorizationToken"
            ],
            "Resource": "*"
        },
        {
            "Sid": "AllowPullSpecificRepo",
            "Effect": "Allow",
            "Action": [
                "ecr:BatchCheckLayerAvailability",
                "ecr:GetDownloadUrlForLayer",
                "ecr:BatchGetImage",
                "ecr:DescribeRepositories",
                "ecr:ListImages",
                "ecr:DescribeImages"
            ],
            "Resource": [
                "arn:aws:ecr:REGION:ACCOUNT_ID:repository/NAMESPACE/*"
            ]
        }
    ]
}

Note: The above strategy allows you to pull all images under NAMESPACE/*.

4. Configure Credential Helper

4.1 Installation

Depending on your operating system, refer to the official installation guide on GitHub for installation.

4.2 Configure Docker

Edit or create ~/.docker/config.json：

{
    "credsStore": "ecr-login"
}

Or use Credential Helper only for ECR (recommended):

{
    "credHelpers": {
        "ACCOUNT_ID.dkr.ecr.REGION.amazonaws.com": "ecr-login"
    }
}

Notes:

• credsStore: Uses this Credential Helper globally.
• credHelpers: Use only for a specific Registry (recommended, does not affect other image registry).

4.3 Configure AWS credentials

# Method 1: Configure via AWS CLI
aws configure

# Method 2: Use environment variables
export AWS_ACCESS_KEY_ID=YOUR_ACCESS_KEY
export AWS_SECRET_ACCESS_KEY=YOUR_SECRET_KEY
export AWS_DEFAULT_REGION=REGION

5. Verify

5.1 Test Credential Helper

# Test if Credential Helper is working
echo "ACCOUNT_ID.dkr.ecr.REGION.amazonaws.com" | docker-credential-ecr-login get

Success will return a result similar to:

{
    "ServerURL": "ACCOUNT_ID.dkr.ecr.REGION.amazonaws.com",
    "Username": "AWS",
    "Secret": "eyJwYXlsb2FkIjoiQ..."
}

5.2 Pull Image

docker pull ACCOUNT_ID.dkr.ecr.REGION.amazonaws.com/NAMESPACE/REPO-NAME:latest

Once configured correctly, pulling images does not require manual docker login.

6. FAQ

Error：no basic auth credentials

• Check the ~/.docker/config.json configuration
• Run aws ecr get-login-password --region REGION to verify AWS credentials
• Check if the IAM policy includes ecr:GetAuthorizationToken

Error：denied: User is not authorized

• Check if the IAM policy includes permissions such as ecr:BatchGetImage
• Verify that the repository ARN is correct

Manual login is still required

• Confirm that ~/.docker/config.json is configured correctly
• Restart Docker
